Saturday, May 14, 2011

Assigning user groups to the Analysis Database Roles using PowerShell

One of the steps involved when installing a full-fledged Dynamics AX 2009 installation is the setting up the security schema for OLAP database. If you do not grant the domain users access to the predefined roles, they will not be able to load the Analysis Reports and Role Center KPI's. When you run the reports and test the Role Centers as administrator, you are essentially bypassing these security checks. You need to test using a regular user to make sure everything is working as expected.

In most cases I end up with simply granting either Domain Users or one specific user group access to all the predefined roles. If you really want to harden security, you would create one Active Directory Group for each role and add users to those roles.

The manual solution

Now adding user groups to each of these roles is a tedious task. The procedure is described on MSDN, but I'm going to repeat the steps here:

  1. Open SQL Server Management Studio
  2. Connect to the Analysis Services
  3. Open the Dynamics AX OLAP Database
  4. Open the Roles
  5. For each role, repeat these steps
    1. Right-click and choose Properties
    2. Open Memberships
    3. Click Add
    4. Click Object Types and make sure "Groups" is marked. Press OK.
    5. Click Locations and navigate to the Active Directory you will search in. Press OK.
    6. Write on the name of the group you want to add. For example "Domain Users" is a system group that includes all registered domain users.
    7. Click Search Names so it validates your input.
    8. Click OK
    9. Click OK again in the Edit Role Dialog.
There are 26 roles in my test environment at the moment. Having to add these Memberships will take me about 10 minutes or so, but is extremely boring.


A simpler solution - PowerShell

Just recently I was about to do this one more time, but then I started thinking about solving this with PowerShell.
PowerShell will be an important part of Dynamics AX 2012, since most of the installation, maintenance and configuration will available with PowerShell commands. So I might as well start to get PowerShell in my fingers.

I searched on the Internet and came across this article by Darren Gosbell about replacing group members from roles in SSAS. By taking his example, I made some minor modifications and here is my script for adding one group to all roles:

[System.reflection.Assembly]::LoadWithPartialName("Microsoft.AnalysisServices")

$svr = new-Object Microsoft.AnalysisServices.Server
$svr.Connect("localhost")
$axssasgrp = "CONTOSO\Domain Users"
foreach ($db in $svr.Databases)
{
    # Print the Database Name
    "Database: " + $db.Name
    If ($db.Name -eq "Dynamics AX")
    {
        foreach ($role in $db.Roles)
        {
            "   Role: " + $role.Name
            $foundMember = $null
            foreach ($member in $role.Members)
            {
                if ($member.Name -eq $axssasgrp)
                {
                    $foundMember = $member
                }
            }
            If ($foundMember -eq $null)
            {
                "      Adding access to " + $axssasgrp
                $newRole = New-Object Microsoft.AnalysisServices.RoleMember($axssasgrp)
                $role.Members.Add($newRole)
                $role.Update()
            }
            else
            {
                "      Usergroup " + $axssasgrp + " already added"
            }
        }
    }
}
$svr.Disconnect()


Now you might need to run PowerShell as administrator for this to work. Change the server name and user group name to make it work in your scenario. I never change the name of the Dynamics AX OLAP.

For cleaning up I also made another script that removes a usergroup. This script looks like this:

[System.reflection.Assembly]::LoadWithPartialName("Microsoft.AnalysisServices")

$svr = new-Object Microsoft.AnalysisServices.Server
$svr.Connect("localhost")
$axssasgrp = "CONTOSO\Domain Users"
foreach ($db in $svr.Databases)
{
    # Print the Database Name
    "Database: " + $db.Name
    If ($db.Name -eq "Dynamics AX")
    {
        foreach ($role in $db.Roles)
        {
            "   Role: " + $role.Name
            $foundMember = $null
            foreach ($member in $role.Members)
            {
                if ($member.Name -eq $axssasgrp)
                {
                    $foundMember = $member
                }
            }
            If ($foundMember -ne $null)
            {
                "      Removing access to " + $axssasgrp
                $role.Members.Remove($foundMember)
                $role.Update()
            }
            else
            {
                "      Usergroup " + $axssasgrp + " not found in role"
            }
        }
    }
}
$svr.Disconnect()


Now I would like to improve this script by adding the ability to read groups from a CSV-file where you could differentiate what user group gets added to what role. I am just learning PowerShell, so if you are a hard core PowerShell scripter and see ways to improve this script, please let me know.

How to run these scripts

I have only tested this on Windows Server 2008 R2 and PowerShell has its shortcut right on the QuickLaunch. Right-click and run it as administrator. Edit the script so user group reference is correct. If Analysis Services is running on a named instance you will need to modify the connect statement with servername\instancename. Copy your final script and from the top left in the PowerShell window, find the Paste command. After the script is pasted, just press a final Enter and let the script do its work.

Tuesday, April 26, 2011

Deploying Reporting Services Reports dependent on X++ helper classes

Today I was having trouble with deploying a custom Reporting Services Report. One of the changes I made to the report was adding a helper class in the AOT and calls a method on this class from one of the data methods within the report.

The deployment was successful, but when I tested the report it threw a Dynamics AX error stating it could not call my custom method. Lucky for me, this customer had Visual Studio installed on the server running SSRS, so I was able to load the Report Library and test it within Visual Studio. The report ran perfectly.

I tried first to delete the report in the Report Manager Web interface, and then redeploy it from scratch. The documentation clearly states:
"Reports often rely on code that is defined in business logic assemblies. During deployment, business logic assemblies, as well as satellite assemblies containing translated resources, are built and deployed to the report server. After the assemblies have been deployed to the report server, the security policy file for the report server is updated to allow.NET Business Connector secure access to the business logic assemblies."
http://msdn.microsoft.com/en-us/library/cc519490.aspx

The report still failed with the same error. But since the report worked within Visual Studio I started thinking about whether or not the added X++ class was truly available for any managed code in SSRS. Those of us who work with Enterprise Portal development knows this always isn't true, and you are some times forced to refresh managed code generated from the AOT. So I pulled up the Reporting Services Configuration Manager and picked my instance, connected to it, and restarted it.


Now the report worked perfectly!


I hope this helps someone.

Monday, February 7, 2011

Property value is not valid when setting datamethod in Dynamics AX SSRS Report

UPDATE January 2012: This is resolved in version 6 of JetBrains Resharper.

I was working with building Reporting Services reports for Dynamics AX 2009 in Visual Studio and when I tried to set the Query property of the Dataset I got this very strange and not very helpful error:
"Property value is not valid" with the details containing "Object reference is not set to an instance of an object".

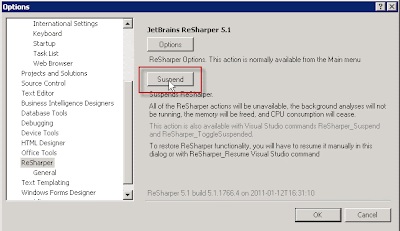

I was pretty sure my Data Method was valid, but I spent some time trying to strip out any possible problems with my code. In the end I tried to test my report in a different environment (which I was lucky enough to have set up earlier). The report worked perfectly in my second environment. I then figured out it had to do with Visual Studio and went back to my development environment for a closer look. Lucky for me, one of the first things I did was trying to suspend ReSharper (www.jetbrains/resharper) and that was it.  After suspending ReSharper, the DataMethod returned the DataTable as expected and everything was back to normal. I have notified the ReSharper developers about this problem, so maybe one day this will get fixed. In the meantime, I hope this post will sort things out for any other developers out there struggling with the same problem. This is version 5.1.2, and I know there is a 5.1.3 version out there. If any later versions of ReSharper fixes this I will update this post (if I remember).



As a side note, ReSharper is my favorite addon for Visual Studio, and if you're working with SharePoint development (Enterprise Portal to be specific), then I'd highly recommend ReSharper. Try it out, you won't regret it! Then again, when working with the Dynamics AX Report Model for Visual Studio, you will simply have to suspend it.
